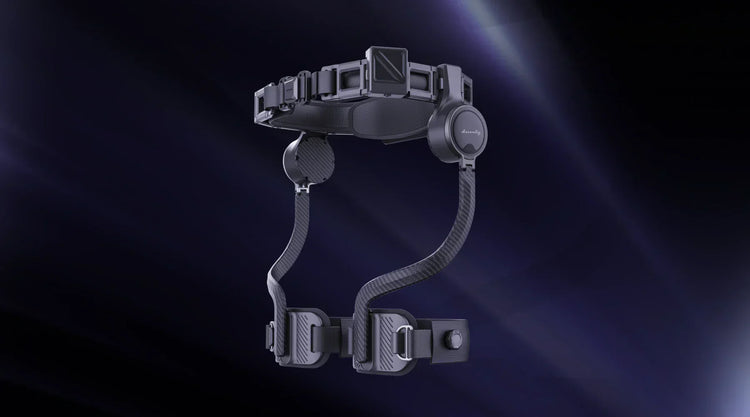

Building a bionic system for walking is a delicate balancing act. Every gram of weight added to the frame is a gram the user must carry. Yet, removing too much strength risks structural failure. To understand how these "robotic legs" function, we must look at the three main parts of the exoskeleton: the waist belt, the mechanical legs, and the wear system.
Part 1: Materials for the Power Belt
The belt serves as the structural anchor for any exoskeleton, whether powered or unpowered. It connects the human torso to the mechanical limbs. This means it must handle high pressure while protecting the sensitive electronics inside. When selecting a metal for this core, engineers typically choose between Titanium and Aluminum alloys.
Titanium Alloy is the best choice for outdoor and high-performance bionics. As a material often used in aerospace and medical implants, it offers an amazing strength-to-weight ratio and lasts a long time. A titanium belt can be significantly thinner and more compact than other metals while remaining nearly impossible to break.
For a rescue team or expedition team working in rough environments, the strength of titanium ensures the frame won't bend or snap under heavy stress. Furthermore, titanium is inherently corrosion-resistant (especially against salt water or the humidity of a rainy trail) and highly durable. Its extremely tough nature makes it the top choice for professional-grade hardware and harsh outdoor use.
Aluminum Alloy is also perfect for lightweight, high-speed applications. While it is not as strong as titanium, it is much cheaper. This makes it a more standard, cost-effective solution for a wearable robotics like exoskeleton.
Summary: Choose titanium if you prioritize longevity and performance in harsh outdoor settings. If you move mainly at home or in the community, an exoskeleton frame made of aluminum often fits your needs and your budget perfectly.
Part 2: Materials for the Leg Frame
The leg frames are the "bones" of the exoskeleton system. They must be rigid enough to transfer motor power into a stride without bending. In the world of high-performance composites, the choice often comes down to Carbon Fiber Reinforced Polymer (CFRP) and Fiberglass Reinforced Polymer (FRP).
Carbon Fiber Reinforced Polymer (CFRP) combines high-strength carbon fibers with a tough resin. This structure offers a lightweight yet extremely strong frame. It reduces the overall weight of the exoskeleton legs and improves the torque efficiency.
CFRP also performs exceptionally well in outdoor environments. Its fatigue resistance ensures consistent support over repeated walking cycles. Unlike metals that can rust or plastics that may warp, CFRP handles moisture, sun, and temperature changes well. This reliability remains consistent in rain, sun, or cold weather, providing steady support through all conditions.
Fiberglass Reinforced Polymer (FRP), or fiberglass, offers a more affordable alternative. It is heavier and less stiff than CFRP, however, it handles impacts well.
Summary: Choose CFRP if you prioritize lightweight and durability. However, fiberglass is a practical choice when cost is a concern and extreme strength or minimal weight isn’t required.
Part 3: Materials for the Wear System
The "Wear System" is the most important part of the design because it is the only part that touches your body. If this interface is uncomfortable, this exoskeleton technology becomes unusable.
To provide a secure, comfortable fit, the assistive system often uses high-density soft padding to spread out pressure. Wearing an exoskeleton can put pressure on your limbs and where it touches your legs. If not handling properly, it may lead to friction and bruising. Soft padding serves as a cushion in between and allows you to walk for hours without discomfort.
Furthermore, when walking, the human body gets hot and moisture builds up. Breathable fabrics help regulate your temperature and keep things clean.
The Ascentiz Approach: Choosing Your Best Fit
At Ascentiz, we aim to provide you the right tool for your specific journey. We offer two versions—Pro and Ultra. You can select the material profile that fits where you go and how you move.
The Ultra Version: Peak Performance
The Ultra model serves those who want the absolute best bionic technology.
- Belt: Made from aerospace-grade AMS 4928 Ti-6AI-4V (Grade 5) titanium alloy, this belt provides a durable core that is thinner, stronger, and more long-lasting in outdoor settings.
- Legs: Constructed with high-strength Toray T700 PAN-based Carbon Fiber (CFRP), which is recognized as an industry standard workhorse. This material is characterized by its high carbon purity and boasts a tensile strength of 4,900 MPa, offering the best power-to-weight ratio while ensuring optimal lightness and strength.
- Best For: Professional rescue work, mountain hiking, and users who want the best durability and performance in harsh environments.
The Pro Version: Reliable Daily Assistance
The Pro model is designed to help you navigate your community and receive daily support.
- Belt: Made from strong aluminum alloy, it provides a lightweight and stiff base that is ideal for city walking and home use, all at an affordable price.
- Legs: Constructed from tough carbon fiber reinforced polymer (CFRP), the robot legs are slightly heavier than Toray T700 but handle bumps effectively.
- Best For: Help at home, daily activities, and users who want a high-quality bionic experience at a better price.
Are you ready to find your perfect fit? Compare the Pro and Ultra models and start your journey toward easier movement.
For a complete look at the exoskeleton technology, see our Ultimate Guide to Robotic Legs for Walking.
