Ascentiz Model Comparison
Take our online quiz and discover the best exoskeleton for your activities.
Compare

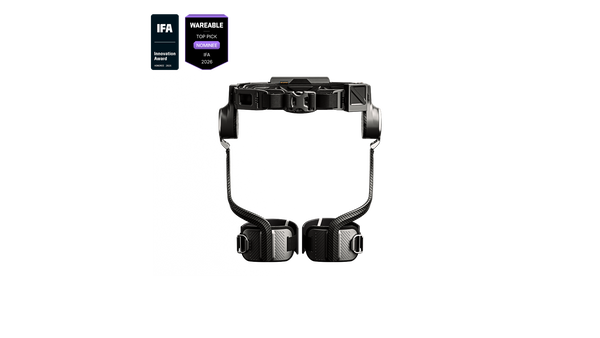

Ascentiz H ULTRA

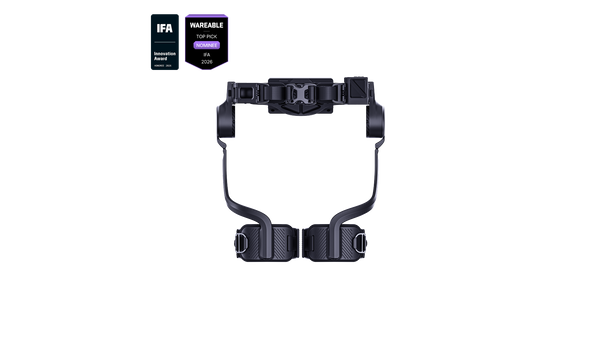

Ascentiz H PRO
Specs & Comparison
Ascentiz H ULTRA
Ascentiz H PRO
Ascentiz H ULTRA
Ascentiz H PRO
Peak Output
1100 W
1000 W
Battery Range
31 miles / 50 km (2 Batteries)
15.5 miles / 25 km (1 Battery)
Total Weight
5.5 lbs / 2.5 kg
5.5 lbs / 2.5 kg
Hardware Material
Carbon Fiber
Titanium Alloy
Carbon Fiber Reinforced Polymer
Aluminium Alloy
Assist Performance
max. 40% Reduced Leg Effort,
max. 66 lbs Leg Offload,
max. 17.4 mph Assisted Speed
max. 40% Reduced Leg Effort,
max. 66 lbs Leg Offload,
max. 15.5 mph Assisted Speed
Operation Modes
EASE, ACC, TRAIN, BOOST
EASE, ACC, TRAIN
Noise Level
≤35 dB
≤35 dB
Recommended For
Trail Running, Biking, Hiking, Mountaineering, Steep Climbs, Long-distance Trekking, Backpacking, High-intensity Daily Use, Long-period Moving & Load Carrying, Photography, Function Customization & Module Expansion
Daily Errands, Commuting, City Exploration, Running, Biking, Travel, Light Hiking, Mountaineering, Stairs & Inclines
Peak Torque
24 Nm *2
22 Nm *2
Peak Boost
1100 W / 1.47 HP
1000 W / 1.34 HP
MCU & Memory
Dual-core 480MHz & 2GB
Dual-core 240MHz & 512MB
Frequency of Control
50kHz
30kHz
APP
iOS, Android
iOS, Android
Intelligent Modes
16 motions
Standing, Slow Walk, Walk, Race Walk, Sprint, Long Run, Hike Up, Hike Down, Stairs Up, Stairs Down, Cycle, Train Walking, Squat, High Knee, Mountain Climbers, Jumping Jacks
12 motions,
Standing, Slow Walk, Walk, Race Walk, Sprint, Long Run, Hike Up, Hike Down, Stairs Up, Stairs Down, Cycle, Train Walking
Motion Switching Response
<200 ms
<200 ms
Motion Recognition Accuracy
99.5%
99.5%
Battery Capacity
75.6Wh
75.6Wh
Battery Range
31 miles / 50 km (2 Batteries)
15.5 miles / 25 km (1 Battery)
Battery Type
Automotive-grade lithium battery cell
Automotive-grade lithium battery cell
Battery Lifespan
2,000 Deep Cycles
2,000 Deep Cycles
Device Durability
3100 miles / 5000 km
3100 miles / 5000 km
Charging Time
65 minutes (with 100W PD3.0 Charger)
65 minutes (with 100W PD3.0 Charger)
Reverse Charging
Max 20W Type-C
Max 20W Type-C
Operating Temperature
-20° to 60° C (-4° to 140° F)
-20° to 60° C (-4° to 140° F)
Ingress Protection Rating
IP54
IP54
Materials
eVent® Waterproof Fabric, Eco-friendly Memory Foam, Duraflex Buckles
Waterproof Nylon, Eco-friendly Memory Foam, Duraflex Buckles
Open source
Base design blueprints open-sourced, Upgradeable compute unit for advanced development
Base design blueprints + SDK
